BRC KTM 500cc 07-16 250/300 CONVERSION KIT, BOLT IN

Please Note:

• Due to the value of the kit, it will be shipped on a single small pallet


• Due to the custom nature of the kit there is no warranty implied or given


• Whilst we will do our best to ensure the correct kit is provided, please ensure all parts are correct before beginning assembly


• Due to US - EU model differences, some modifications may be required to mounts, exhaust or other supporting parts


• You will be required to complete a waiver confirming you agree to the above information before the kit is dispatched

Application

• KTM 250/300 EXC/XC/XC-W 2007-2016

Features

• PERFORMANCE 510cc of arm-stretching performance. 60+ HP, 50+ Ft Lbs torque.


• POWER VALVE Simple, pneumatic power valve system for linear, smooth power delivery.


• TRANSMISSION Accepts your donor 5- or 6-speed transmission.


• STARTING Both kick start and electric start compatible. Every engine comes with a decomp button to make starting this big bore easier.


• EXHAUST Every kit comes with a pipe and silencer

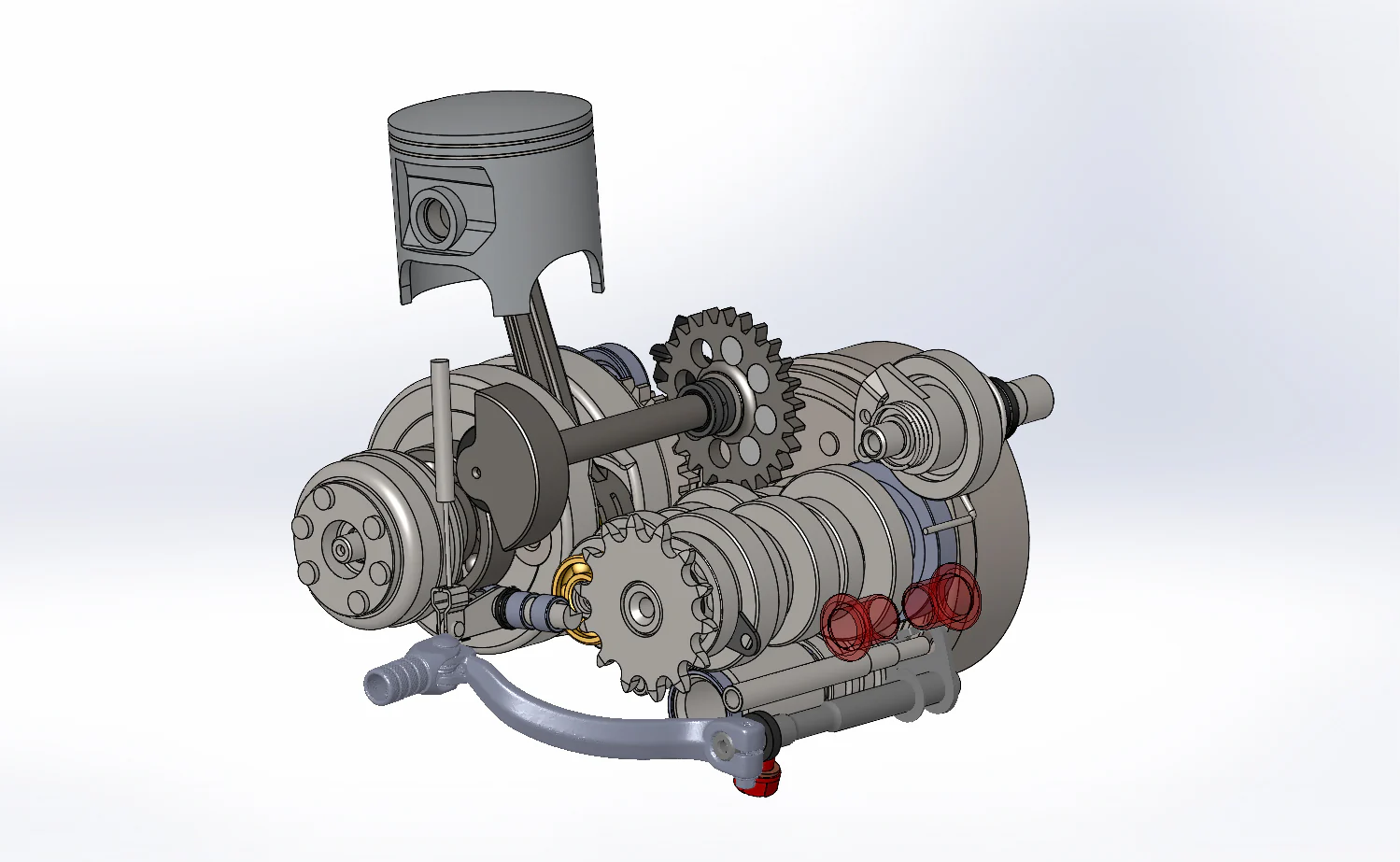

• VIBRATIONS Bad vibrations are cancelled out with our integral counter balance shaft.


• CARBURATION Contrary to popular belief, the stock 36 or 38mm carburetor is the best fit for your BRC500

Spec

• Bore: 89mm


• Stroke: 82mm


• Displacement: 510cc


• Compression Ratio: 12.5:1


• Squish: 1.47-2.00mm


• Primary Ratio: 2.25 (72:32)
